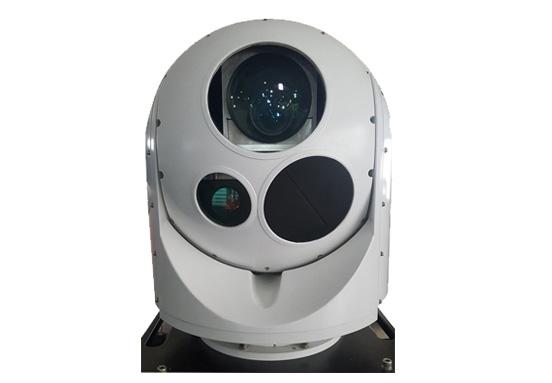

Overview of TC900PTZ Marine Night Vision Camera
TC900PTZ integrates cooling infrared thermal imaging and high-definition optical camera. The marine night vision camera can be equipped with laser illuminator or laser range finder, GPS, radar, electronic compass and other modules. High precision MEMS gyroscope ensures stable image output in wind and waves. Radar tracking and rotation prompt function can help you realize the function of tracking the target in real time. Protection class IP66 makes it suitable for use in harsh environment. The body is made of high-strength aluminum alloy, coated with three anti paint which is resistant to seawater corrosion, spherical body, and low wind resistance.
Features of Thermal Imaging For Boats
Real-time feedback data
Large calibre thermal imager for ultra-long distance monitoring
Marine security camera systems:
Supports secondary development of control protocols and integration into user systems
It can be used in many important fields such as offshore buoy turret, coastal defense monitoring, port monitoring and so on.
Technical Specifications of TC900PTZ Marine Night Vision Camera
|
Item
|
TC900PTZ
|
|
Infrared Performance
|
|
Type
|
Medium wave cooled infrared
|
|
Material
|
MCT
|
|
IR resolution
|
320 × 256
|
640 × 512
|
|
Pixel pitch
|
30mm
|
15μm
|
|
Spectral range
|
3～5μm
|
|
NETD/Sensitivity
|
≤20mK
|
|
Image enhancement
|
RIGHT
|
|
Polarity/LUT mode
|
Black hot/White hot
|
|
Contrast/Brightness
|
Auto / Motor
|
|
Lens Data
|
|
Focal distance
|
60/240mm
|
15-330mm
|
|
FOV
|
WFOV: 9.2 ° × 7.2 °
|
WFOV: 36 ° × 29 °
|
|
NFOV: 2.3 ° × 1.8 °
|
NFOV: 1.67 ° × 1.33 °
|
|
Focusing
|
Electric / Automatic
|
|
Recognition distance (ship)
|
4.0km
|
6.5km
|
|
Recognition distance(human)
|
2.0km
|
3.3km
|
|
CCD Video Camera
|
|
Resolution
|
1920 x 1080
|
|
CCD type
|
2M 1/1.8” CMOS star-level super low-lux gun type digital camera
|
|
Lens
|
15.6mm~500mm(32X)
|
|
FOV
|
0.44°~23.12°(wide angle~telescoping)
|
|
Illuminance
|
Color: 0.002Lux@(F1.2, AGCON)
|
|
B/W: 0.0002Lux@(F1.2, AGCON)
|
|
Focus
|
Motor
|
|
Aperture
|
Auto
|
|
WDR
|
Yes
|
|
Fog-through
|
Support
|
|
Laser Illumination(Optional)
|
|
Laser power
|
15W
|
|
Laser wavelength
|
808nm
|
|
Irradiation distance
|
2km
|
|
Laser Ranging(Optional)
|
|
Laser wavelength
|
1550nm
|
|
Ranging distance (2.3m x 2.3m ship)
|
5Km
|
8Km
|
|
Ranging accuracy
|
± 3m
|
|
Pan & Tilt
|
|
Angle back function
|
PELCO-D
|
|
Pan angle
|
0 ° ~ 360 °
|
|
Tilt angle
|
-120 ° ~ 90 °
|
|
Max Rotation angle speed of boresight
|
Pan≥90 ° / s, tilt≥90 ° / s
|
|
Max Acceleration of angle
|
Pan≥100°/s2, tilt≥100°/s2
|
|
Boresight stabilization accuracy
|
<0.1mrad(1σ)
|
|
System Features
|
|
Display device
|
19-inch, 1280×1024 resolution, interface (include Time, Date, GPS, target position, etc.)
|
|
Control device
|
Remote joystick control
|
|
Video interface
|
RJ45, HD-SDI
|
|
Communication Interface
|
RS422
|
|
Auto tracking
|
Support
|
|
Power System
|
|
Working voltage
|
DC: 24V ± 10%
|
|
Power consumption
|
≤50W Normal, ≤300W Peak
|
|
Environmental Parameters
|
|
Operating temperature range
|
-30 ℃ ~ + 60 ℃
|
|
Storage temperature range
|
-40 ℃ ~ + 70 ℃
|
|
Encapsulation
|
IP66
|
|
Physical Data
|
|
Size
|
574mm × 408mm × 408mm
|
|
Weight
|
55kg
|
|
Packing
|
|
Standard
|
Thermal imaging camera, User manual, Warranty card, Packing box
|
|
Please note that product specifications are subject to change without notice. To acquire more accurate
|
